Sunthinks Multifunction Digital Printing Inkjet Single Pass UV Printing Phone Case/Skateboard/Wallpaper/Poster UV Printer

Product name : Single pass uv printer
Brand : Sunthinks
Model : SHC260/SHC530/SHC790/SHC1100
Printing width : 260mm/530mm/790mm/1100mm
Printing material : Suitable for all materials
Printhead : Epson I3200 printhead
Quantity : Max 32pcs
Operating system : PLC
Printing speed : 35m/min

Contact Us

UV single pass printer - 官网.jpg

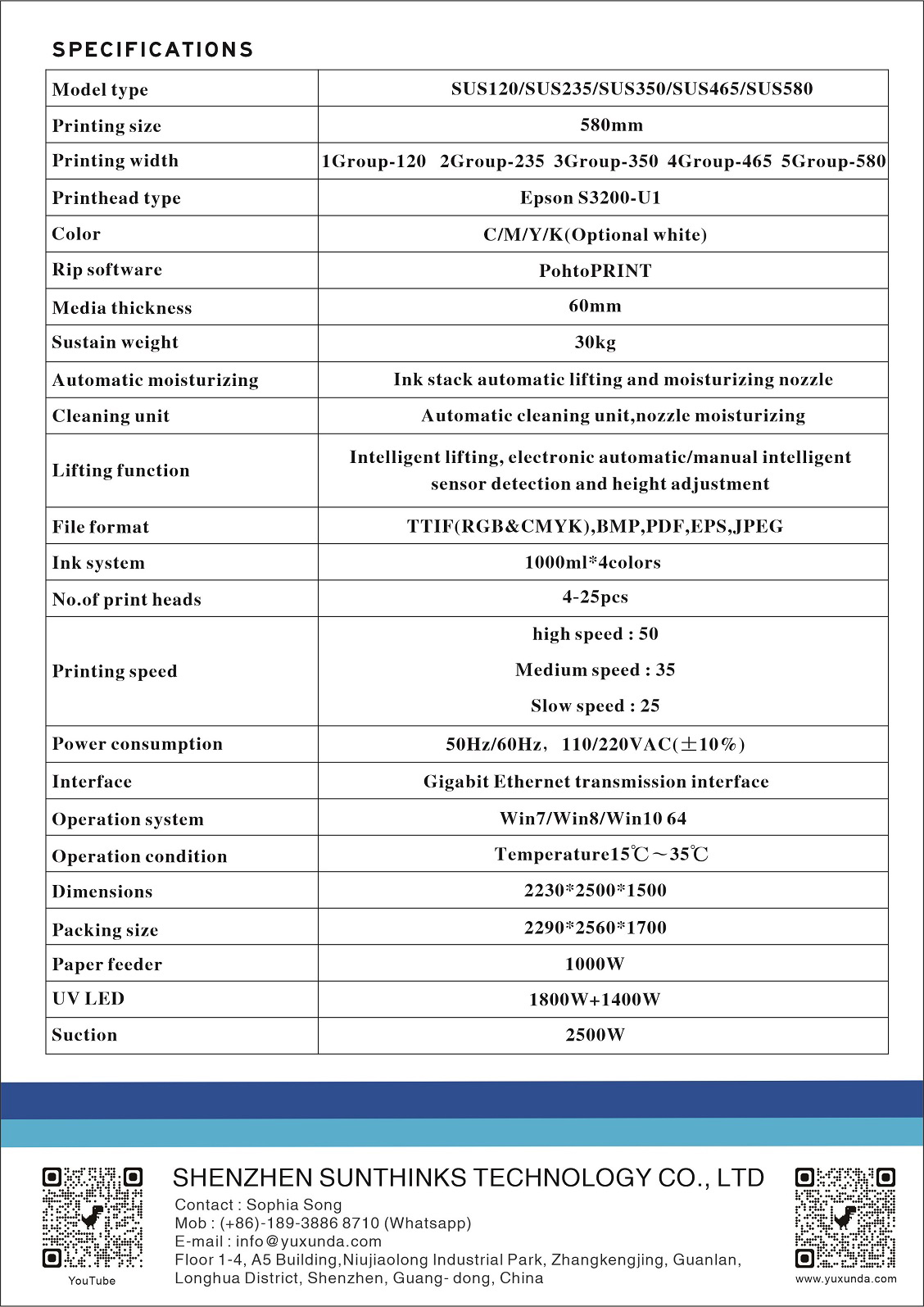

Product Paramenters


Printer name
UV single pass printer
Brand
Sunthinks or customize your brand
Printing type
Flatbed inkjet printing or roll-to-roll printing
Printer model
SHC260
SHC530
SHC790
SHC1100
Printhead type
I3200-U1 UV printhead / I3200-A1 water-based ink printhead
No.printheads
8
16
24
32
Printing width
260mm
530mm
790mm
1100mm
Color
C/M/Y/K
Rip software
PohtoPRINT
Max printing height
80mm
Bearing weight
30kg
Printing resolution
600dpi*600dpi,600dpi*1200dpi
Lifting function
Intelligent lifting, electronic automatic/manual intelligent sensor detection and height adjustment
File format
TTIF(RGB&CMYK),BMP,PDF,EPS,JPEG
Ink system
1000ml*4colors
Printing speed
Ordinary printing : 35㎡/min
High-precision printing : 30㎡/min
Ultra-precision printing : 25㎡/min
Voltage
110/220V
Interface
Gigabit Ethernet transmission interface
Operation system
Win7/Win8/Win10
Operation condition
15℃~35℃
Printer size
2230*2500*1500
Packing size
2290*2560*1700
Paper feeder power
1000W
UV led power
1800W
Suction fan power
2500W



Picture Display

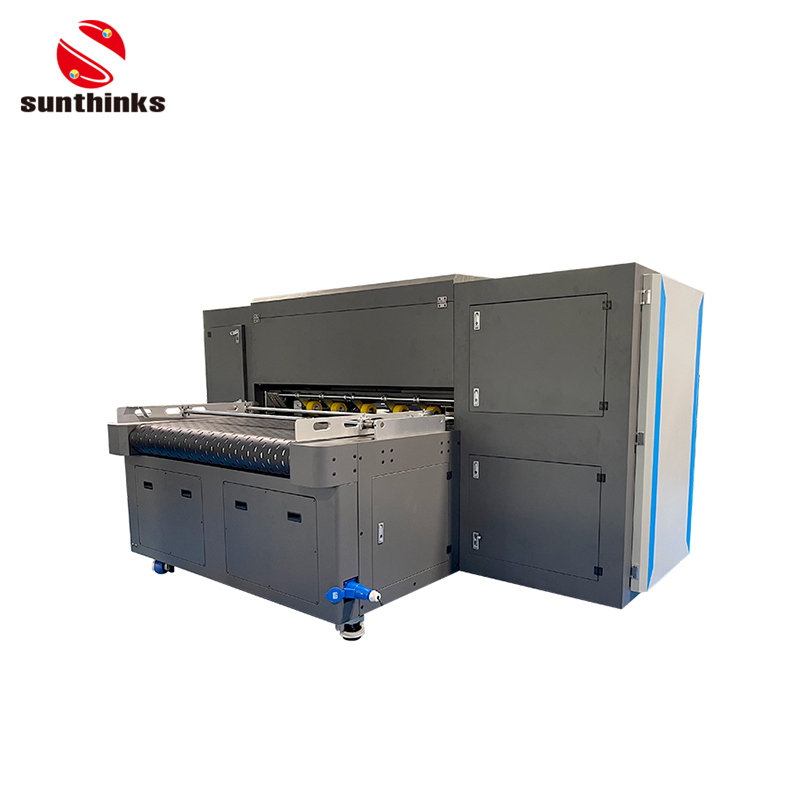

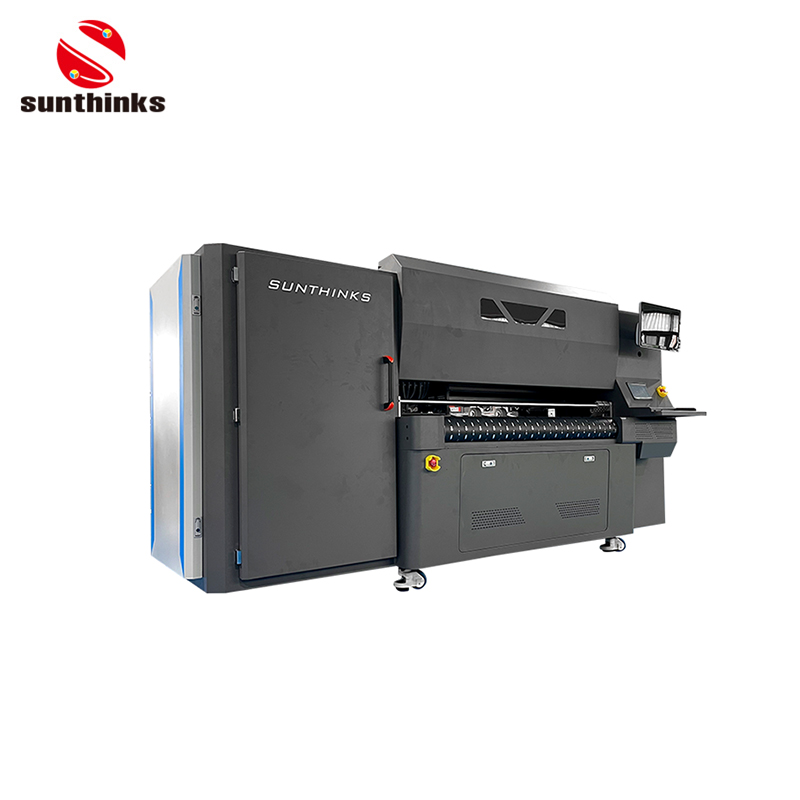

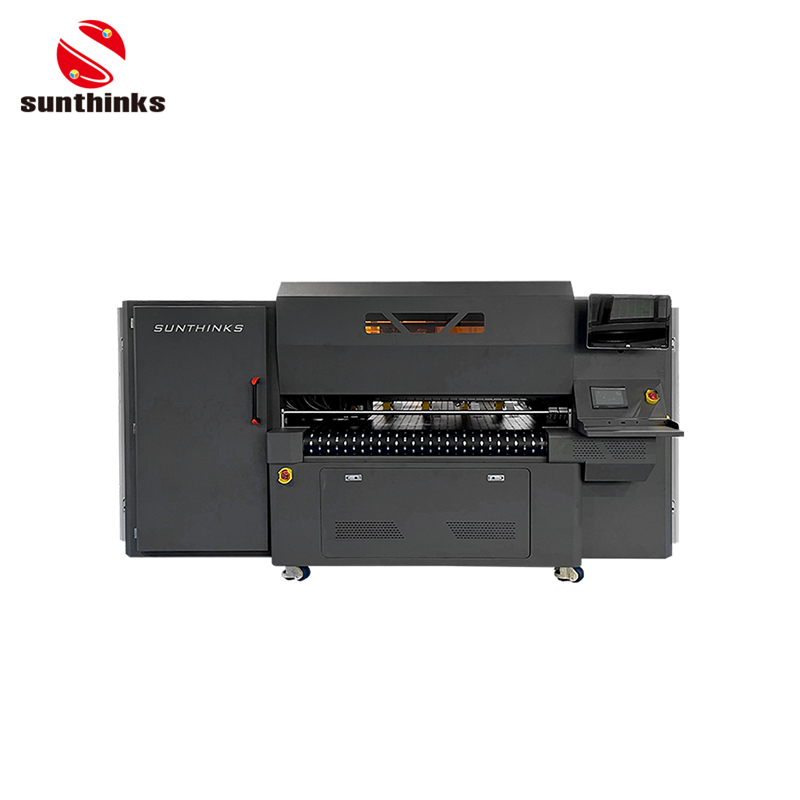

uv single pass printer.JPEG
